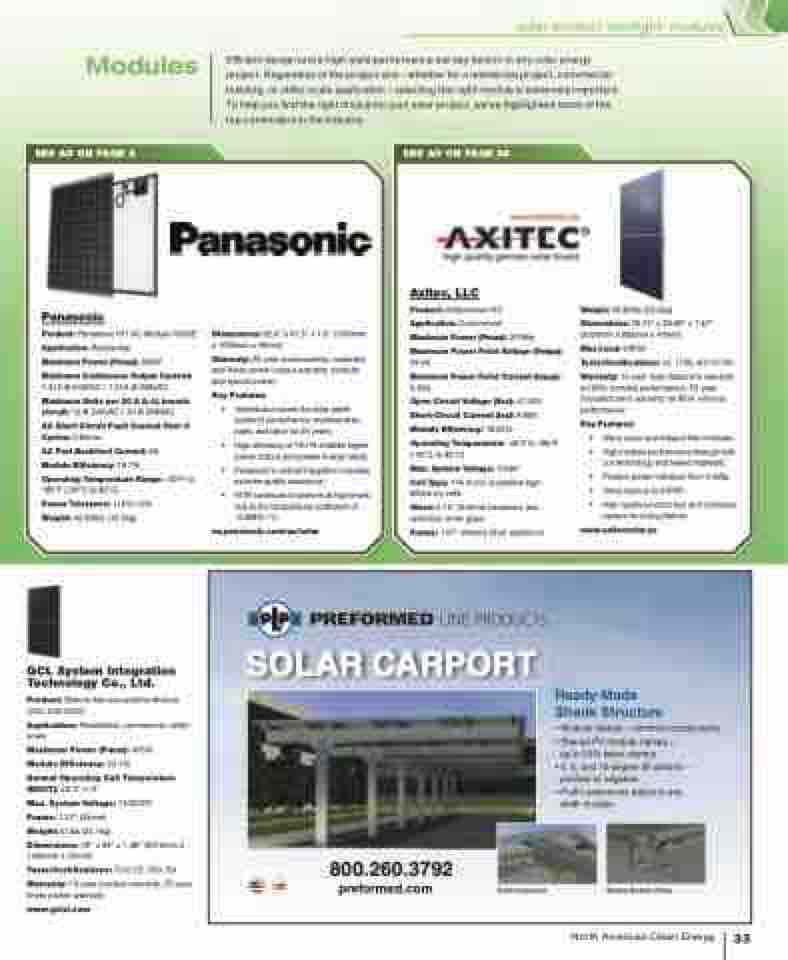

Page 33 - North American Clean Energy September/October 2019 Issue

solar product spotlight: modules
Modules
SEE AD ON PAGE 3
Efficient design and a high-yield performance are key factors in any solar energy project. Regardless of the project size - whether for a residential project, commercial building, or utility-scale application - selecting the right module is extremely important. To help you find the right choice for your solar project, we’ve highlighted some of the top contenders in the industry.
SEE AD ON PAGE 36
Axitec, LLC Product: AXIpremium HC
Application: Commercial Maximum Power (Pmax): 370Wp
Maximum Power Point Voltage (Vmpp):
39.6V
Maximum Power Point Current (Impp):
9.35A
Open Circuit Voltage (Voc): 47.40V
Short-Circuit Current (Isc): 9.85A
Module Efficiency: 18.65%
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Max. System Voltage: 1000V
Cell Type: 144 mono crystalline high
efficiency cells
Glass: 0.13" (3.2mm) hardened, low reflection white glass
Frame: 1.57" (40mm) silver aluminum
Weight: 49.82lbs (22.6kg) Dimensions: 78.74" x 39.06" x 1.57"
(2000mm x 992mm x 40mm)
Max Load: 50PSF
Tests/Certifications: UL 1703, IEC 61730
Warranty: 15-year manufacturer’s warranty on 90% nominal performance, 25-year manufacturer’s warranty on 85% nominal performance
Key Features:
• Micro crack and hotspot free modules;
• High module performance through half- cut technology and tested materials;
• Positive power tolerance from 0-5Wp;
• Snow load up to 50PSF;
• High quality junction box and connector system for a long lifetime.
www.axitecsolar.us
Panasonic
Product: Panasonic HIT AC Module N330E
Application: Residential Maximum Power (Pmax): 330W
Maximum Continuous Output Current:
1.31A @ 240VAC / 1.51A @ 208VAC
Maximum Units per 20 A (L-L) branch circuit: 12 @ 240VAC / 10 @ 208VAC
AC Short Circuit Fault Current Over 3 Cycles: 5.8Arms
AC Port Backfeed Current: 0A Module Efficiency: 19.7%
Operating Temperature Range: -22°F to 185°F (-30°C to 85°C)
Power Tolerance: +10%/-0% Weight: 42.99lbs. (19.5kg)
Dimensions: 62.6" x 41.5" x 1.6" (1590mm x 1053mm x 40mm)
Warranty: 25-year workmanship, materials, and linear power output warranty (module and microinverter)
Key Features:
• TripleGuard covers the solar panel system’s performance, workmanship, parts, and labor for 25 years;
• High efficiency of 19.7% enables higher power output and greater energy yields;
• Panasonic’s vertical integration provides extreme quality assurance;
• HITR continues to perform at high levels due to the temperature coefficient of -0.258% /°C.
na.panasonic.com/us/solar
SOLAR CARPORT
Ready-Made
Shade Structure
• Modular design – common components
• Shared PV module clamps – up to 50% fewer clamps
• 0, 5, and 10-degree tilt options – positive or negative
• Purlin extensions adjust to any width module
800.260.3792 preformed.com
Purlin Extension
Shared Module Clamp
GCL System Integration Technology Co., Ltd.
Product: Bifacial Monocrystalline Module (GCL-M3/72DH)
Application: Residential, commercial, utility- scale
Maximum Power (Pmax): 405W Module Efficiency: 20.1%
Normal Operating Cell Temperature (NOCT): 45°C +/-2°
Max. System Voltage: 1500VDC
Frame: 1.37" (35mm)
Weight: 51lbs (23.1kg)
Dimensions: 79" x 39" x 1.38" (2010mm x 1000mm x 35mm)
Tests/Certifications: TUV, CE, ISO, SA Warranty: 10-year product warranty, 25-year
linear power warranty
www.gclsi.com
