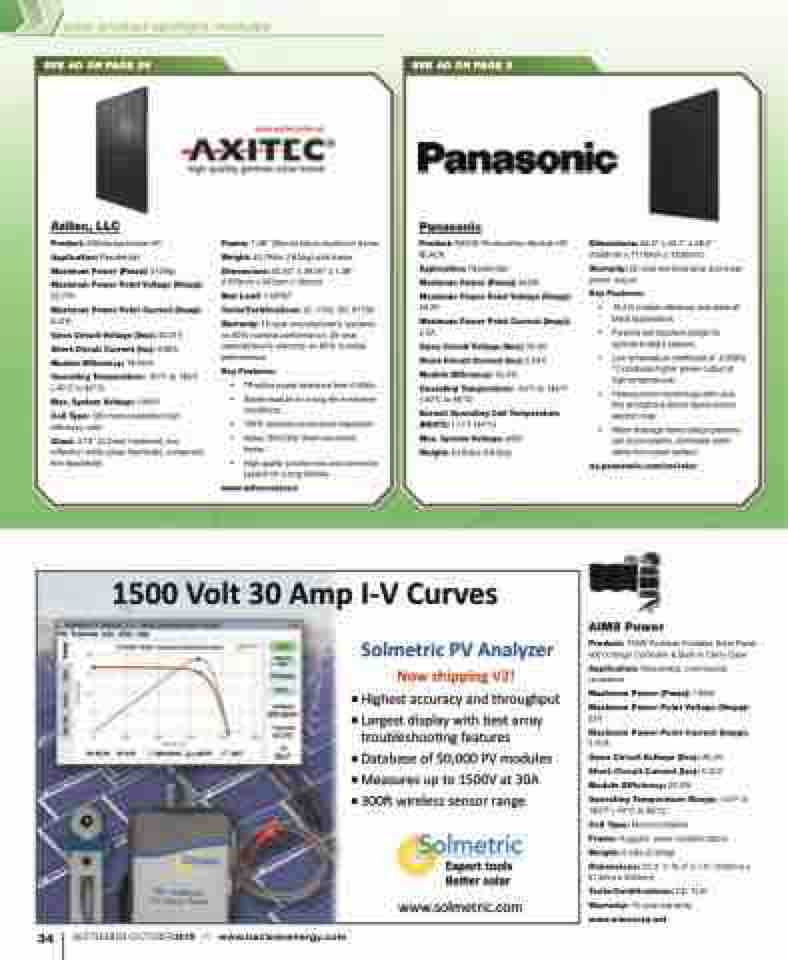

Page 34 - North American Clean Energy September/October 2019 Issue

solar product spotlight: modules
SEE AD ON PAGE 36
SEE AD ON PAGE 3
Axitec, LLC
Product: AXIblackpremium HC
Application: Residential Maximum Power (Pmax): 310Wp
Maximum Power Point Voltage (Vmpp):
32.74V
Maximum Power Point Current (Impp):
9.47A
Open Circuit Voltage (Voc): 40.01V
Short-Circuit Current (Isc): 9.96A
Module Efficiency: 18.66%
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Max. System Voltage: 1000V
Cell Type: 120 monocrystalline high
efficiency cells
Glass: 0.13" (3.2mm) hardened, low reflection white glass (frontside), composite film (backside)
Frame: 1.38" (35mm) black aluminum frame
Weight: 40.79lbs (18.5kg) with frame
Dimensions: 65.94" x 39.06" x 1.38" (1675mm x 992mm x 35mm)
Max Load: 113PSF
Tests/Certifications: UL 1703, IEC 61730
Warranty: 15-year manufacturer’s warranty on 90% nominal performance, 25-year manufacturer’s warranty on 85% nominal performance
Key Features:
• TPositive power tolerance from 0-5Wp;
• Stable module for a long life in extreme conditions;
• 100% electroluminescence inspection;
• Axitec-Soft-Grip-Seam aluminum frame;
• High quality junction box and connector system for a long lifetime.
www.axitecsolar.us
Panasonic
Product: N325K Photovoltaic Module HIT
BLACK
Application: Residential
Maximum Power (Pmax): 325W
Maximum Power Point Voltage (Vmpp):
59.2V
Maximum Power Point Current (Impp):
5.5A
Open Circuit Voltage (Voc): 70.9V
Short-Circuit Current (Isc): 5.94A
Module Efficiency: 19.4%
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Normal Operating Cell Temperature (NOCT): 111°F (44°C)
Max. System Voltage: 600V Weight: 40.81lbs (18.5kg)
Dimensions: 65.3" x 43.7" x 48.5" (1658mm x 1110mm x 1232mm)
Warranty: 25-year workmanship and linear power output
Key Features:
• 19.4% module efficiency and sleek all black appearance;
• Pyramid cell structure design for optimal sunlight capture;
• Low temperature coefficient of -0.258% °C produces higher power output at high temperatures;
• Heterojunction technology with ultra- thin amorphous silicon layers reduce electron loss;
• Water drainage frame design prevents rain accumulation, eliminates water stains from panel surface.
na.panasonic.com/us/solar
34
SEPTEMBER•OCTOBER2019 /// www.nacleanenergy.com
1500 Volt 30 Amp I-V Curves
Solmetric PV Analyzer
Now shipping V2!
Highest accuracy and throughput
Largest display with best array troubleshooong features
Database of 50,000 PV modules Measures up to 1500V at 30A 3000 wireless sensor range
Expert tools Beeer solar
www.solmetric.com
AIMS Power
Product: 130W Portable Foldable Solar Panel
with Charge Controller & Built-in Carry Case
Application: Residential, commercial, recreation
Maximum Power (Pmax): 130W Maximum Power Point Voltage (Vmpp):
22V
Maximum Power Point Current (Impp):
5.91A
Open Circuit Voltage (Voc): 26.4V
Short-Circuit Current (Isc): 6.35A
Module Efficiency: 22.3%
Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
Cell Type: Monocrystalline
Frame: Rugged, water resistant fabric
Weight: 6.5lbs (2.95kg)
Dimensions: 23.3" x 16.3" x 7.9" (592mm x 414mm x 200mm)
Tests/Certifications: CE, TUV Warranty: 10-year warranty www.aimscorp.net
