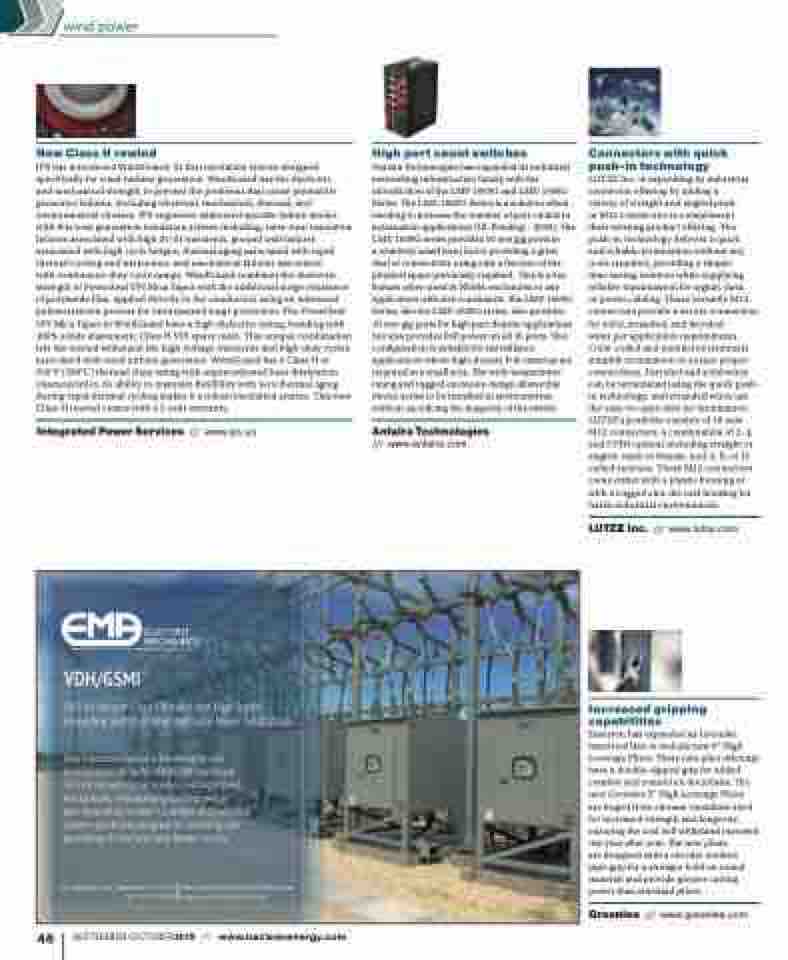

Page 48 - North American Clean Energy September/October 2019 Issue

wind power
New Class H rewind
IPS has introduced WindGuard, its first insulation system designed specifically for wind turbine generators. WindGuard has the dielectric
and mechanical strength to prevent the problems that cause premature generator failures, including electrical, mechanical, thermal, and environmental stresses. IPS engineers addressed specific failure modes with this next generation insulation system including, inter-turn insulation failures associated with high dv/dt transients, ground wall failures associated with high cycle fatigue, thermal aging associated with rapid thermal cycling and harmonics, and mechanical failures associated
with continuous-duty cycle ramps. WindGuard combines the dielectric strength of PowerSeal VPI Mica Tapes with the additional surge resistance of polyimide film, applied directly to the conductors using an advanced polymerization process for unsurpassed surge protection. The PowerSeal VPI Mica Tapes in WindGuard have a high dielectric rating, bonding with 100% solids elastomeric Class H VPI epoxy resin. This unique combination lets the rewind withstand the high-voltage transients and high-duty cycles associated with wind turbine generators. WindGuard has a Class H or 356°F (180°C) thermal class rating with unprecedented heat dissipation characteristics. Its ability to maintain flexibility with zero thermal aging during rapid thermal cycling makes it a robust insulation system. This new Class H rewind comes with a 5-year warranty.
IntegratedPowerServices /// www.ips.us
High port count switches
Antaira Technologies has expanded its industrial networking infrastructure family with the introduction of the LMP-1600G and LMX-1600G Series. The LMX-1600G Series is a solution when needing to increase the number of port counts in automation applications (UL Pending – 2020). The LMX-1600G series provides 16 one gig ports in
a relatively small form factor providing a great deal of connectivity using only a fraction of the physical space previously required. This is a key feature when used in NEMA enclosures or any application with size constraints. The LMP-1600G Series, like the LMX-1600G series, also provides 16 one gig ports for high port density applications but also provides PoE power on all 16 ports. This configuration is suitable for surveillance applications where high-density PoE cameras are required in a small area. The wide temperature rating and rugged enclosure design allows this device series to be installed in environments without sacrificing the longevity of the switch.
Antaira Technologies
/// www.antaira.com
Connectors with quick push-in technology
LUTZE Inc. is expanding its industrial connector offering by adding a
variety of straight and angled push-
in M12 connectors to complement
their existing product offering. The push-in technology delivers a quick and reliable termination without any tools required, providing a simple
time saving solution while supplying reliable transmission for signal, data,
or power cabling. These versatile M12 connectors provide a secure connection for solid, stranded, and ferruled
wires per application requirements. Color coded and numbered terminals simplify termination to ensure proper connections. Ferruled and solid wires can be terminated using the quick push- in technology, and stranded wires use the easy-to-open tabs for termination. LUTZE’s portfolio consists of 18 new M12 connectors, a combination of 2, 4, and 5 PIN options including straight or angled, male or female, and A, B, or D coded versions. These M12 connectors come either with a plastic housing or with a rugged zinc die cast housing for harsh industrial environments.
LUTZEInc. /// www.lutze.com
48
SEPTEMBER•OCTOBER2019 /// www.nacleanenergy.com
Increased gripping capabilities
Emerson has expanded its Greenlee hand tool line to include new 9" High Leverage Pliers. These new plier offerings have a double-dipped grip for added comfort and control on the jobsite. The new Greenlee 9" High Leverage Pliers
are forged from chrome vanadium steel for increased strength and longevity, ensuring the tool will withstand repeated use year after year. The new pliers
are designed with a circular toothed pipe grip for a stronger hold on round material and provide greater cutting power than standard pliers.
Greenlee /// www.greenlee.com
