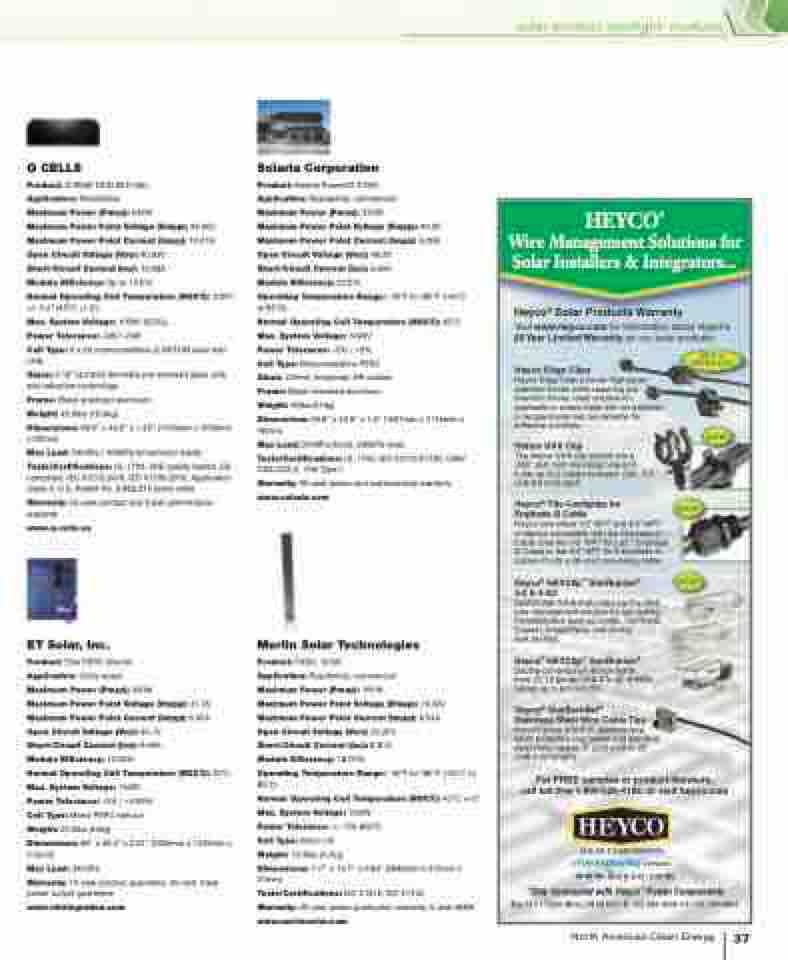

Page 37 - North American Clean Energy September/October 2019 Issue

solar product spotlight: modules
Q CELLS
Product: Q.PEAK DUO BLK-G6+
Application: Residential
Maximum Power (Pmax): 345W
Maximum Power Point Voltage (Vmpp): 34.25V
Maximum Power Point Current (Impp): 10.07A
Open Circuit Voltage (Voc): 40.92V
Short-Circuit Current (Isc): 10.58A
Module Efficiency: Up to 19.5%
Normal Operating Cell Temperature (NOCT): 109°F +/- 5.4° (43°C +/-3°)
Max. System Voltage: 1000V IEC/UL Power Tolerance: -0W / +5W
Cell Type: 6 x 20 monocrystalline Q.ANTUM solar half- cells
Glass: 0.13" (3.2mm) thermally pre-stressed glass with anti-reflection technology
Frame: Black anodized aluminum Weight: 43.9lbs (19.9kg)
Dimensions: 68.5" x 40.6" x 1.26" (1740mm x 1030mm x 32mm)
Max Load: 5400Pa / 4000Pa (snow/wind loads)
Tests/Certifications: UL 1703, VDE quality tested, CE- compliant, IEC 61215:2016, IEC 61730:2016, Application Class II, U.S. Patent No. 9,893,215 (solar cells)
Warranty: 25-year product and linear performance warranty
www.q-cells.us
Solaria Corporation Product: Solaria PowerXT 370W
Application: Residential, commercial
Maximum Power (Pmax): 370W
Maximum Power Point Voltage (Vmpp): 40.2V
Maximum Power Point Current (Impp): 9.20A
Open Circuit Voltage (Voc): 48.3V
Short-Circuit Current (Isc): 9.60A
Module Efficiency: 20.5%
Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
Normal Operating Cell Temperature (NOCT): 45°C Max. System Voltage: 1000V
Power Tolerance: -0% / +3%
Cell Type: Monocrystalline PERC
Glass: 3.2mm, tempered, AR coated
Frame: Black anodized aluminum
Weight: 46lbs (21kg)
Dimensions: 63.8" x 43.9" x 1.6" (1621mm x 1116mm x 40mm)
Max Load: 5400Pa (front), 3600Pa (rear) Tests/Certifications: UL 1703, IEC 61215/61730, CAN/
CSA-C22.2, Fire Type 1
Warranty: 25-year power and workmanship warranty www.solaria.com
3465 Heyco_NA 3.5x10_Layout 1 8/1/19 2:50 PM Page 1
HEYCO®
Wire Management Solutions for Solar Installers & Integrators...
Heyco® Solar Products Warranty
Visit www.heyco.com for information about Heyco’s
20 Year Limited Warranty on our solar products. NEW &
IMPROVED
NEW
NEW
Heyco® HEYClipTM SunRunner® NEW 4-2 & 4-2U
SunRunner 4-2 & 4-2U clips are the ideal
wire management solution for top racking manufacturers such as Unirac, IronRidge,
Everest, SnapNRack, and similar rack profiles.
Heyco® HEYClipTM SunRunner®
Double-compression design holds from (1) 12 gauge USE-2 to (2) 8 AWG cables up to 8,3 mm OD.
Heyco® SunBundler®
Stainless Steel Wire Cable Ties Aircraft grade 302/304 stainless wire w/UV protected vinyl jacket and stainless steel crimp sleeve, 8˝ (203 mm) to 20˝ (508 mm) lengths.
For FREE samples or product literature, call toll free 1-800-526-4182, or visit heyco.com
www.heyco.com
“Stay Connected with Heyco” Power Components Box 517 • Toms River, NJ 08754 • P: 732-286-4336 • F: 732-244-8843
Heyco Edge Clips
Heyco Edge Clips provide high panel retention forces while requiring low insertion forces. Ideal solution for applications where holes are not available or temperatures are too extreme for adhesive solutions.
Helios UVX Clip
The Helios UVX clip installs into a
.260˝ (6,6 mm) mounting hole and
holds up to 2 cables between .230-.315˝ (5,8-8,0 mm) each.
Heyco®-Tite Cordgrips for
Enphase Q Cable
Heyco now offers 1/2˝ NPT and 3/4˝ NPT cordgrips compatible with the Enphase Q Cable. Use the 1/2˝ NPT for just 1 Enphase Q Cable or the 3/4˝ NPT for 2 Enphase Q Cables PLUS a #8 solid Grounding cable.
ET Solar, Inc. Product: Elite PERC bifacial
Application: Utility-scale
Maximum Power (Pmax): 390W
Maximum Power Point Voltage (Vmpp): 41.3V
Maximum Power Point Current (Impp): 9.45A
Open Circuit Voltage (Voc): 49.1V
Short-Circuit Current (Isc): 9.96A
Module Efficiency: 19.09%
Normal Operating Cell Temperature (NOCT): 25°C
Max. System Voltage: 1500V
Power Tolerance: -0% / +4.99%
Cell Type: Mono PERC half cut
Weight: 52.9lbs (24kg)
Dimensions: 80" x 39.4" x 0.21" (2039mm x 1002mm x 5.5mm)
Max Load: 2400Pa
Warranty: 10-year product guarantee, 30-year linear
power output guarantee
www.etintegration.com
Merlin Solar Technologies Product: FX36L 165W
Application: Residential, commercial
Maximum Power (Pmax): 165W
Maximum Power Point Voltage (Vmpp): 19.34V
Maximum Power Point Current (Impp): 8.54A
Open Circuit Voltage (Voc): 23.25V
Short-Circuit Current (Isc): 8.81A
Module Efficiency: 18.76%
Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
Normal Operating Cell Temperature (NOCT): 45°C +/-2° Max. System Voltage: 1000V
Power Tolerance: +/- 3% @STC
Cell Type: Mono cSi
Weight: 10.4lbs (4.7kg)
Dimensions: 117" x 14.7" x 0.83" (2983mm x 372mm x
21mm)
Tests/Certifications: IEC 61215, IEC 61730
Warranty: 20-year power production warranty, 5-year M&W www.merlinsolar.com
